Application tabs and main menu
Menu bar
The Menu bar consists of
- Menu File
- Menu Edit
- Menu Help
Menu File contains:
- New – creates a new Application with a new VisNow’s Workspace,
- Open data file – creates a new reading module from the list in the Workspace Panel,
- Open test data – creates a new test object module,
- Load network – opens a network from a saved file,
- Save network – saves the current network into a .vna file,
- Close – closes the current Application Tab,
- Exit – quits VisNow.
Menu Edit contains:
- Delete – deletes a selected module
- Colormap Editor – opens the Colormap Window (see: Colormap Editor)
- Preferences – opens the Preferences Window.
Menu help opens the help window.

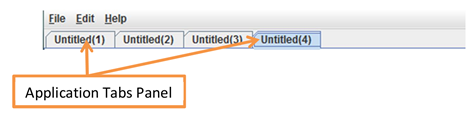

Application tabs
Below the main menu the application tabs can be visible. Each VisNow Application (workspace) opens in a new tab. The tabs in the bar enable the user to switch between applications and close the application with “x” button on the tab.
Additionally the tab can show the status icon of error (
) or warning (
), meaning that the network in this application has some problem. A warning means that one of the modules in the connected network has no data on the required input port. An error means that one of the modules in the connected network has wrong data on the required input port. Each status is also represented by the module status icon and by a respective message in the status bar.
The tab title is the application title. By default each application is untitled until it is saved. When the application is saved the tab shows its name.
