Module: Trajectories
Traces geometry trjectories in timeframe fields.
| input port | type | description | data acceptors |
|---|---|---|---|
| inField | VNField | Field with time frames scalar component |
| output port | type | description | data schemas |
|---|---|---|---|
| trajectoriesField | VNIrregularField | ||
| mappedTrajectoriesField | VNRegularField | ||
| outObj | VNGeometryObject | complete animated geometry |
Description
The module generates trajectories for scalar time dependent field data.
Input data
At input is a field with a scalar time dependent data component.
Output data
At output there is a field of line cells - the trajectories, a projection of the trajectories and a geometry object.
Computation parameters
The frame range slider defines the maximum time step for which trajectories are created.
Presentation parameters
Presentation parameters are described in the common interfaces section under the Presentation Panel entry.

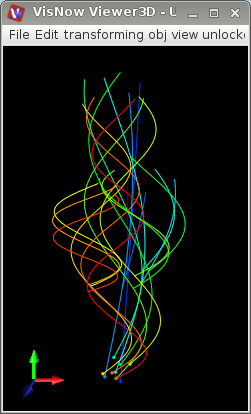

Example
Choose the test points flow module from test objects library and trajectories from 3D field mappers and connect all modules. In test points flow UI choose particle numbers 20 and time frame numbers 200.
